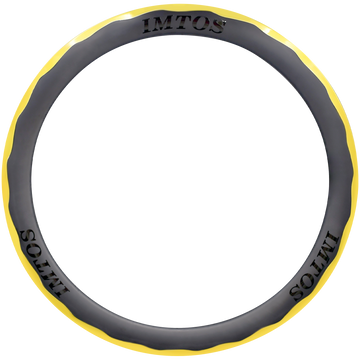

Ultra-Light 360g Aero Carbon Road Rim-50/30 Profile

Basic

• Model: Aero Wavy

• Rim Type: Road · Gravel

• Materials: Toray T700 + T1100 Carbon Fiber

• Edition: Unique Edition

• Warranty: 3Years

Specification

• Size: 700C

• ERD (Effective Rim Diameter): 540mm

• Drillings: 16 / 18 / 20 / 21 / 24 / 28 / 32

• External Width: 30mm

• Rim Height: 50mm

• Weight: 360g

• Valve Hole Diameter: 6.5mm (Presta)

• Spoke Holes Diameter: 4.5mm

• Assembly Hole Diameter: 7.5mm

• Drain Holes: Optional

• Tubeless Compatible: Yes

• Tubeless Ready: Optional

• Strength: 100J <UCI, no tire>

Recommendation

• Tire Size: 28 ~ 53mm Road / 28 ~ 40mm Cyclocross / 28 ~ 60mm Gravel

• Tire Pressure: 30 ~ 90psi Road / 25 ~ 54psi Cyclocross / 27 ~ 79psi Gravel

• Spoke Tension: 100 ~ 130kgf

• Max System Weight: 144Kg

Appearance

• Carbon Weave: UD

• Finish: Free Coating

Application

• Road, Triathlon, Cyclocross, Dirt, Gravel, and Adventure riding.
